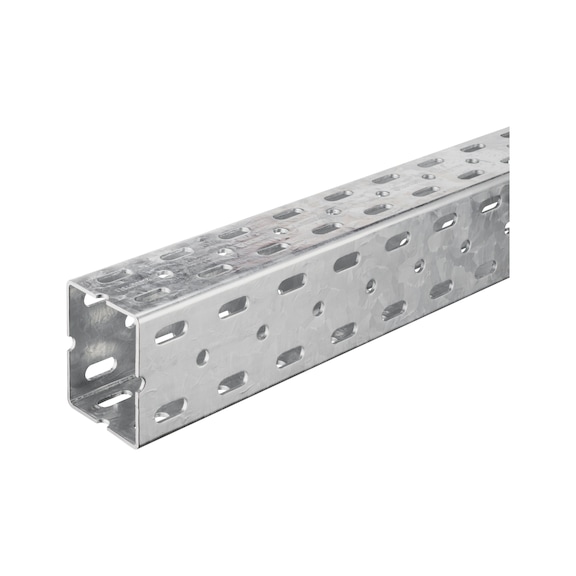

Mounting rail W-IP 120
Mounting rail W-IP 120
MNTRL-(W-IP)-100X120X4-HDG
Art.-no. 5256100004
EAN 4099618794308
Individual price display after login
Show availability in Würth shop
In order to check the stock in a Würth branch, please log in.
If you have any questions, please call our service hotline at +49 7931 91-0.
You are not yet a Würth customer or do not yet have access data to the Online Shop? Then register now in just a few steps. After a successful check of the entered data, you will have immediate access to the stock inquiry as well as all prices and can immediately order.
Exclusively for trade customers
Register now and access more than 125,000 products
Modular rail system for heavy-duty applications with mechanical, electrical and plumbing equipment, and in industrial and plant construction
- Ideal for large projects due to the generous length of 6 m
- Extremely durable and corrosion resistant due to thermal hot-dip galvanisation
- High stability and load-bearing capacity with a height of 120 mm and a width of 100 mm
- Simple and precise mounting due to a bore diameter of 14 mm
- Optimal load distribution and fastening options due to bore spacing of 70 mm
- Robust and reliable with a weight of 13.066 kg per metre
- Easy handling and fast, continuously variable mounting
Product information
Datasheets(X)
Application area
The W-IP 120 mounting rail is ideal for installing and fastening cables, wires and other components in various construction and industrial applications.
 | |

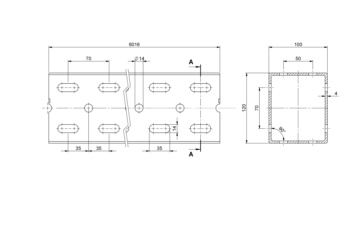

Length (L) | 6000 mm |
Height (H) | 120 mm |
Width (B) | 100 mm |
Bore diameter (RL) | 14 mm |
Hole distance (LA) | 70 mm |
Surface | Hot dip galvanized |
Weight per meter | 13.066 kg |
Area moment of inertia Y-axis | 248.77 cm⁴ |
Center of gravity Y-axis | 50 mm |
Yield strength | 235 N/mm² |
Section modulus Y-axis | 41.46 cm³ |
E module | 210000 N/mm² |
| System - admissible load | ||||||
| S235 | 100x120 | L | W | f_3 | F_1 | F_2 |
| [m] | [mm] | [kN/m] | [kN] | [kN] | ||
| 0,5 | 2,5 | 73,07 | 36,54 | 12,18 | ||
| 1 | 5 | 36,54 | 26,68 | 12,18 | ||
| 1,5 | 7,5 | 23,67 | 17,75 | 8,87 | ||
| 2 | 10 | 13,28 | 13,28 | 6,64 | ||
| 2,5 | 12,5 | 8,47 | 10,58 | 5,29 | ||
| 3 | 15 | 5,85 | 8,78 | 4,39 | ||
| 3,5 | 17,5 | 4,28 | 7,49 | 3,74 | ||
| 4 | 20 | 3,13 | 6,51 | 3,26 | ||
| 4,5 | 22,5 | 2,17 | 5,75 | 2,57 | ||
| 5 | 25 | 1,56 | 4,87 | 2,05 | ||
| 5,5 | 27,5 | 1,15 | 3,94 | 1,66 | ||
| 6 | 30 | 0,86 | 3,24 | 1,36 | ||
| Shear force | ||||||
| Bending stress | ||||||
| Deflection l/200 | ||||||
| Admissible load for the partial safety factor γQ = 1.5 Dead load profile with partial safety factor γG = 1.35 taken into account | ||||||
Select RAL-colour code
!! NOTE: On-screen visualisation of the colour differs from real colour shade!!
