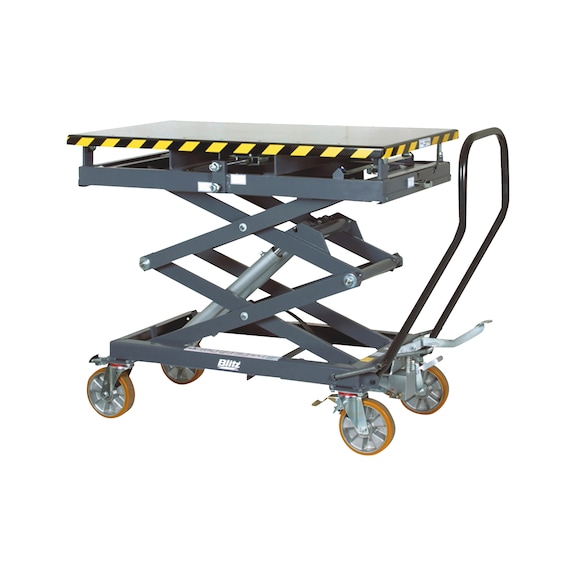

Master Gear S3 1.0 lifting platform
Lifting table multifunction Master Gear S3
LFTTBL-MASTER-GEAR-S3
Art.-no. 9501010960
EAN 4057612144789
Register now and access more than 125,000 products
- Electro-hydraulic load lift
- Control via push button (up and down)
- Creep lift via manual hydraulics; for Master Gear 0.5/1.0 the load is lifted via foot hydraulics
- Lowering via foot control (the integrated lowering brake valve enables precise control of the lowering speed)
- The VarioDesk mounting plate has a displacement of ±20 mm in the x and y axes and a tilt of ±2° (Master Gear 1.0/2.0 only)
- Mounting holes enable secure attachment of vehicle-specific equipment
Mounting holes:
Additional, vehicle-specific equipment can be securely fastened to the table top using the through hole matrix.
Safety:
The large base of the Master Gear lifting table offers a high level of stability and enables safe and precise working.
Full foot operation:
The integrated lowering brake valve enables precise control of the lowering speed. The load is lifted using foot hydraulics.
Easy to manoeuvre:
Large castors (2 fixed and 2 swivelling with integrated parking brake) ensure mobility in the workplace.
VarioDesk:
The large mounting plate of the Master Gear has a displacement of ±20 mm in the x and y axes and a tilt of ±2° for a wide range of adjustment options.
Datasheets(X)
Width (20) | 740 mm |
Length (40) | 2044 mm |
Product weight (per item) (50) | 290.000 kg |
