LIBRAK 360WS RAL 7016 wheel balancer - WHLBALNR-360WS

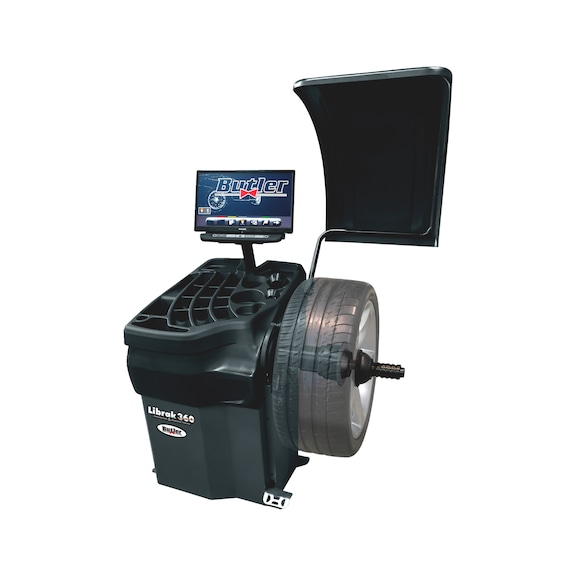

LIBRAK 360WS RAL 7016 wheel balancer

Wheel balancer 360WS
WHLBALNR-360WS

Art.-no. 9501010951

EAN 4057612873849

All versions

Individual price display after login
LIBRAK 360WS RAL 7016 wheel balancer

Art.-no. 9501010951

Individual price display after login
Quantity
PU
x 1 pcs

Show availability in Würth shop
Exclusively for trade customers

Register now and access more than 125,000 products

Wheel balancer with manual quick clamping nut

The Librak 360WS Pro provides optimal support when balancing wheels with its extended weight tray and 22 inch screen. Due to the automatic program sequence and the program for hidden positioning of the weights behind the spokes, it enables fast and precise balancing of car tyres up to a diameter of 30 inches.



  • Wheel balancer for rim diameters from 10-30 inches

  • Optimised weight tray

  • Manual quick-clamping nut

  • 22 inch screen. Operation via membrane keyboard

  • External callipers for determining wheel width

  • Determines distance and rim diameter by means of an integrated 2D measuring arm

  • Automatic sonar wheel dimensions for determining wheel width

  • Automatic start when the wheel hood is lowered

  • Stops automatically at the unbalanced position, indicates the position with a laser line in the 6 o'clock position and automatically rotates to the second unbalanced position

  • Hidden weight program for weight placement behind the spokes

  • Weight-saving program

  • Sonar rim width measurement


Scope of delivery


  • Centring cone for cars (1 set/3 pieces), D = 44-112 mm and manual rim width callipers and pliers

  • Centring cone for SUV, D = 95-132 mm

  • Holder for adhesive balancing weight roll
Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Absolute weight measuring accuracy

1 g

Product weight (per item)

145.000 kg

Max. rim width

22 yd

Min./max. rim diameter

10-30 yd

Radial run-out measurement

No

Wheel guard

Yes

Tyre inflator

No

Clamping device

Mechanical

Nominal voltage

230 V

Type of vehicle

Passenger car and transporter

Display

Digital

Brake

Yes

Width

1347 mm

Length

963 mm

Automatic turning to weight position

Automatically both

Wheel lift

No

Drive for balance unit

Motor

Automatically applies rim data

Distance and diameter

Service components
Category Services Art. no.
Service Delivery with forklift for wheel balancers and tyre changers 5996 001 226
Service Installation/instructions for tyre changers with discs 5996 001 227
