Fitting Stainless steel, 16001
Double nipple 16001
DBNPL-ET-SST-G3/4
Art.-no.
4998100006
EAN 4042816415124
Prices for customers after login
Show availability in Würth trade store
In order to check the stock in a Würth branch, please log in.
If you have any questions, please call our service hotline at +49 7931 91-0.
You are not yet a Würth customer or do not yet have access data to the Online Shop? Then register now in just a few steps. After a successful check of the entered data, you will have immediate access to the stock inquiry as well as all prices and can immediately order.
Exclusively for trade customers
Register now and access more than 125,000 products
Double nipple
Compliance with drinking water ordinance
- In accordance with the assessment basis of the Federal Environment Agency
- of elastomer guidelines
- of DVGW worksheet W 270
All threads in accordance with EN ISO 228
- Cylindrical G thread also called Whitworth thread (BSP)
- Defined length of thread engagement including after repeated assembly
- Can be fully screwed in
- Metallic sealing edge, bonding or soft seal
High load on the material possible
- Pressure range up to PN 25 bar possible
Product information
Datasheets(X)
Application area
- Hydraulics
- Pneumatics
- Mechanical engineering
- Water treatment
- Landscaping and gardening
- Sanitary, heating and air conditioning technology
- Food industry
 | |

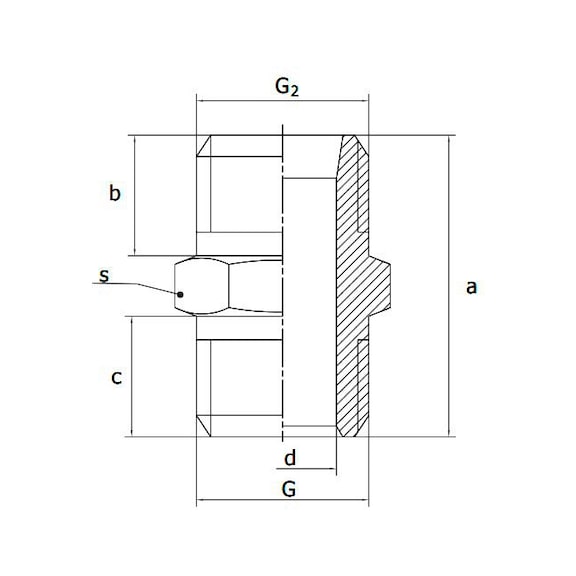

Thread type x nominal diameter (G) | G3/4 |
Thread type 2 x nominal diameter 2 (G2) | G3/4 |
Length | 26 mm |
Length 2 | 11 mm |
Length 3 | 11 mm |
Internal diameter | 17 mm |
Width across flats | 27 mm |
Min./max. temperature conditions | -20 to 150 °C |
Surface | Plain |
Nominal pressure PN | 25 |
Material | Stainless steel A4, 1.4404 |
Thread type | Pipe thread |
RoHS-compliant | Yes |
