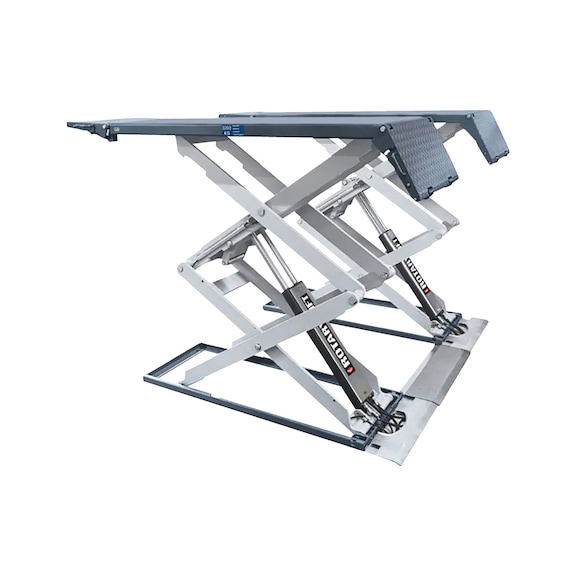

DS32CAT-A lift - SCISLFT-DS32CAT-A

DS32CAT-A lift

Double scissor lift DS32 CAT-A 3.2 t
SCISLFT-DS32CAT-A

Art.-no. 9501010953

EAN 4057612732733

All versions

Individual price display after login
DS32CAT-A lift

Art.-no. 9501010953

Individual price display after login
Quantity
PU
x 1 pcs

Show availability in Würth shop
Exclusively for trade customers

Register now and access more than 125,000 products

3.2 t electro-hydraulic double scissor lift
  • Versatile loading platform, adjustment range 1,500-2,160 mm

  • Supports vehicles up to VW T5/T6 with short wheelbase

  • Flat design, drive-on height 105 mm

  • Optimum corrosion protection due to cathodic coating

  • Electro-hydraulic drive with self-venting system

  • Two independently operating hydraulic circuits with four maintenance-free hydraulic cylinders (bolted)

  • Self-lubricating slide bearings

  • Quietly running hydraulic unit integrated in the control panel with a pressure gauge as standard

- Operation via push buttons


- Side panels are removable on all four sides


- Practical space for documents on the control panel


- Control voltage 24 V



  • Scissors made of solid material

  • No mechanical connection between the platforms

  • Emergency lowering in the event of a power failure

  • Includes limit switch - can be installed at floor level

  • Stops the lowering movement if blocked by an obstacle

  • Hose length between lifting platform and control panel 2 m


Scope of delivery


  • 2x pre-assembled lifting units

  • Pre-assembled control panel

  • 4x rubber supports 40 mm

  • Assembly material (not including anchors or oil)
Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Load capacity

3200 kg

Drive for lifting platform

Electro-hydraulic

Lift height

202 cm

Number of control units

1 PCS

Base frame

Mounting feet

Over-ground

No

Type of vehicle

Passenger car

Nominal voltage

400 V

Colour

Anthracite
