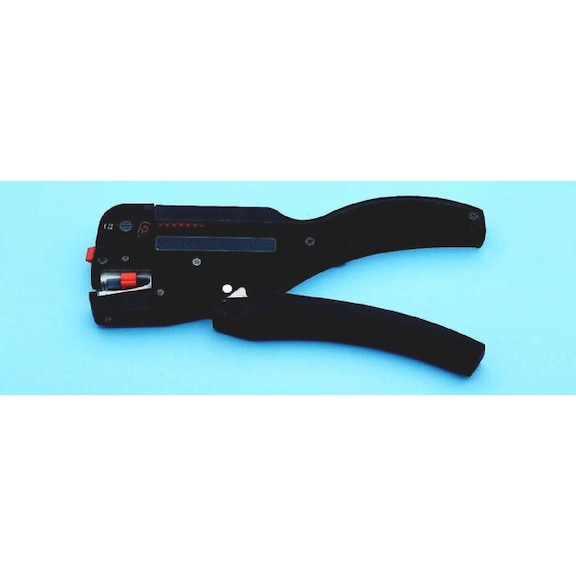

Crimping pliers, multitool
Crimping pliers for wire end ferrules on strip
CRMPPLRS-WENDFER-(0,5-2,5SMM)
Register now and access more than 125,000 products
• For end sleeves on a strip, 0.5–2.5 mm2
• Cuts, peels and crimps.
• Manage end sleeves easily:
- End sleeves on a strip inside the pliers
- Automatic feeding
- Crimping according to EN 50027 and DIN 46228
• Adjustment of peeling length 4–18 mm
Datasheets(X)
1. Open the crimping roll cover.
2. Push the locking knob sideways. Continue rolling the crimping roll until it is the correct size. The roll must become locked.
3. Adjust the slide switch according to the socket size.
4. Open the top cover of the crimping pliers. Install the wire end sleeve strip in its place. The first end sleeve should go inside the roll. Close the cover.
5. Push the peeled wire into an end sleeve from the side of the pliers. Press the pliers against the wire and crimp together.
Connector type | Wire end ferrules |
Min./max. wire cross section | 0.5-2.5 mm² |
Number of crimping points | 1 PCS |
Locator | Yes |
Length (L) | 210 mm |
Material | Plastic / metal |
Surface | Plastic |
